#374695 - Yesterday at 19:48 Dock/Tuner
Ladmo
addict

Registered: 04/09/2004
Posts: 544
Loc: Oklahoma
Just wondering if there is a way to use a tuner with a ML Dock? I don't think there is, but figured I would ask. I did not see anything in the FAQ that addressed it.
Thanks.
_________________________
The only easy day...was yesterday!

Top
#374696 - Yesterday at 21:08 Re: Dock/Tuner [Re: Ladmo]
mlord
carpal tunnel

Registered: 29/08/2000
Posts: 14529
Loc: Canada
Just wire up the tuner connector (needs additional pins for the docking connector) and stick it out the back or mount it in the back panel. That's how I do it.


Attachments



Top
#374697 - Today at 02:22 Re: Dock/Tuner [Re: mlord]
Ladmo
addict

Registered: 04/09/2004
Posts: 544
Loc: Oklahoma
So I have to cut open my beautiful MLDock? Not sure what/where the 'extra wires' of which you speak
_________________________
The only easy day...was yesterday!

Top
#374698 - Today at 12:16 Re: Dock/Tuner [Re: Ladmo]
mlord
carpal tunnel

Registered: 29/08/2000
Posts: 14529
Loc: Canada
No need to cut anything open. There are four screws on the underside of the dock for opening things up. The tuner module uses extra contacts on the docking connector for its wiring -- those contacts are not populated, so you would have to order a few (DigiKey), and crimp the tuner connector wires to those, and insert them into the correct slots of the docking connector (from the rear).

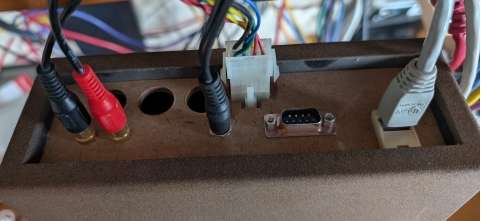

Just dangle the connector assembly out through one of the cooling holes on the rear of the dock.

I think the FAQ must have info on the docking connector pin-out somewhere. The instructions for the tuner may also have that info(?).
